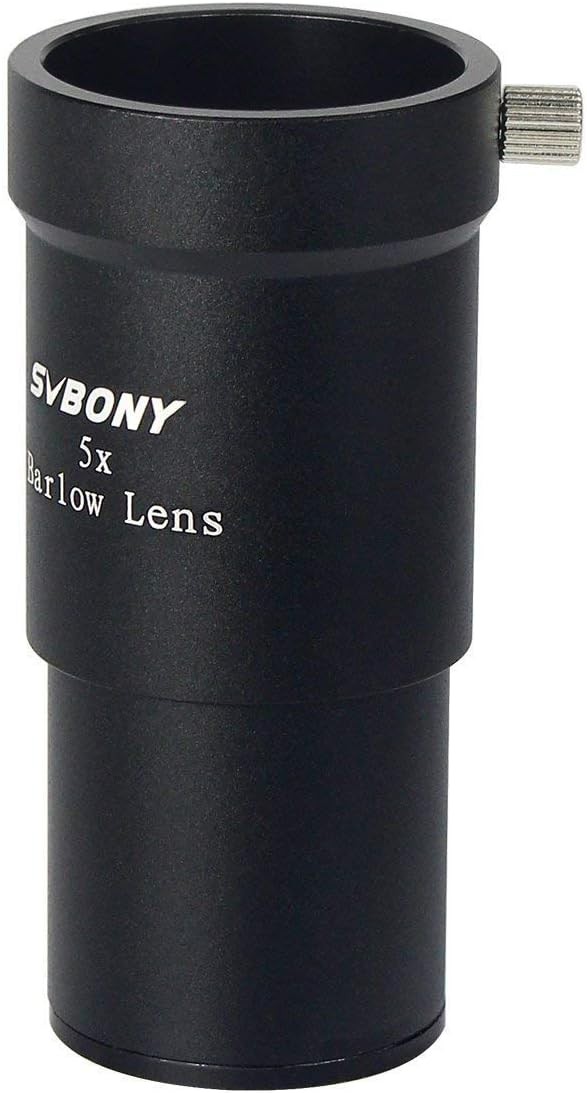

SVBONY 5X Barlow Lens Review (2026)

At $17.99 with 946 ratings behind a 4.4 average, this is the cheapest and second-best-evidenced pick here, and the only one with a warranty field that reads like an actual term. It scores 7.3 because its own first bullet says a 5x lens “doubles” the magnification, and because its three part numbers and two element counts do not agree with each other.

In short: the 5x barlow lens earns 7.3/10 from the Blue Rays Technologies team. This review is research-based. We did not physically test this product; specifications, ratings and prices are taken from the live listing on 17 October 2026. The rest of this review explains how that score was reached, and the full comparison is in our best barlow lenses roundup.

Key Specifications

Every figure below is copied from the live retailer listing on 17 October 2026. Where the 5x barlow lens publishes a field that does not describe a Barlow at all, we have put it in the limitations section rather than here.

A 5x barlow lens Is a Specialist, Not a Starting Point

Five times is a lot. Multiply your telescope’s focal length by five and divide by your shortest eyepiece, then compare the answer with roughly fifty times your aperture in inches — the figure most observers treat as the practical ceiling on an average night. On a 130 mm reflector at 650 mm focal length with a 10 mm eyepiece, 5x gives 325x against a ceiling nearer 250x.

That makes this a planetary and lunar accessory for good nights and long-focus instruments, which is how the Item Highlight field pitches it: “for Astronomy & Astrophotography.” On most nights with most telescopes a 2x will give a sharper, more useful image than a 5x, and at $17.99 that is a cheap lesson to learn rather than an expensive one.

Coatings, Body and the Warranty That Breaks the Pattern

The description claims “Quality aluminum stock and black anodized body” with “multi coated optics design” and a housing that is “blackened to maximize image contrast.” At 135 g and 31.7 mm of barrel it is the heaviest-feeling of the cheap picks but still light enough for a small mount.

The warranty field is the genuine surprise: “We provide 1 year warranty for SVBONY telescope accessories and 30 days no reason to return. Beyond the warranty period: We still offer maintain servi…” — a duration, a return window and a position on what happens afterwards. Across this shelf, two products have no warranty field at all and two give a bare duration with no coverage statement. The cheapest product gives the fullest answer.

Three Part Numbers and Two Element Counts

This listing cannot agree with itself about what it is made of. Additional features says “3 element 2 group lenses”. Item Highlight says “2 Element One Group Broadband FMC Green Film”. The description manages both in different bullets. Three elements in two groups and two elements in one group are different pieces of glass.

The identifiers are worse. Model name reads “FUSF9102A”, Model number reads “FAUF9102A” and Manufacturer part number reads “FCAF9102A”. Three strings for one product, differing by one or two letters each, which is exactly the sort of near-match that makes a listing hard to cross-reference against a maker’s own catalogue.

Limitations and Compromises

The headline error is in the first line of the description: “The value must have 5x barlow lens doubles the magnification of any 1.25 inch eyepiece.” A 5x lens does not double anything. The sentence reads as though it were lifted from the 2x listing and the number swapped in the title but not in the body, and it is the first thing a buyer reads.

Objective lens diameter reads “9 centimeters” — a telescope’s aperture, and in centimetres where every other dimension on the listing is in millimetres. Power source is answered “barlow lens”, which is the product’s own name in a field asking what powers it. Finderscope reads “Reflex” and Age range description reads “aldult”, misspelled.

Optically, the limitation is the one the price implies. Multi-coated is a weaker claim than the fully multi-coated the other four make, and at 5x every weakness in the telescope, the mount and the air is magnified with the image. Expect a dim, soft view on anything but a steady night.

For completeness, the fields on this listing that describe something other than this product are:

• Objective lens diameter: 9 centimeters
• Power source: barlow lens
• Finderscope: Reflex
• Age range description: aldult
• Mount: Fixed Mount

Setting Up This 5x Barlow Lens

Insert it into a 1.25-inch focuser or diagonal, add a longer eyepiece rather than your shortest one, and refocus from scratch. Pairing a 5x with a 25 mm eyepiece gives the same magnification as a 5 mm with far more comfortable eye relief, which is the only sensible way to use a factor this large.

Give the telescope twenty minutes to cool before judging the image, and try it on the moon first — a bright target forgives a lot. If the view will not come to a clean focus at all, the night is not steady enough and no amount of adjustment will fix it. Keep the caps on; a multi-coated surface marks more easily than a fully multi-coated one.

Who Should Buy This 5x Barlow Lens?

Someone who already owns a 2x, has a long-focus telescope and wants to try serious lunar and planetary magnification for the price of a takeaway. Also the right buy for anyone who wants to find out experimentally where their own seeing ceiling is, because $17.99 is the cheapest way to discover it.

Skip it as a first Barlow. At 5x a beginner will conclude the accessory is useless when the real limit is the atmosphere, and the Celestron Omni 2x at $41.95 is the purchase that will actually get used.

The Verdict

The budget pick, and genuinely good value if you understand what 5x asks of a night. 7.3 reflects $17.99, 946 ratings at 4.4, a blackened anodized body and the only warranty field on this shelf that states a duration, a return window and a post-expiry position. It is marked down for a description whose first sentence says a 5x lens doubles magnification, for two incompatible element counts, for three near-identical part numbers, and for a coating claim one grade below the rest. Buy it second, never first.

Check the current price of 5x barlow lens on Amazon — the listing shows $17.99 on 17 October 2026, and the price on Amazon is the one that counts.

Affiliate disclosure: Blue Rays Technologies earns a commission on qualifying purchases made through the Amazon links on this page, at no extra cost to you.

5x Barlow Lens – Frequently Asked Questions

The questions below are the ones buyers actually search for about this review.

Is a 5x barlow lens usable on a small telescope?
Rarely. Multiply the telescope’s focal length by five, divide by your shortest eyepiece, and compare the result with about fifty times the aperture in inches. On most small telescopes 5x exceeds that ceiling and the image goes soft.

Why does the description say it doubles magnification?
We do not know, and we are quoting it rather than correcting it: the first bullet reads “The value must have 5x barlow lens doubles the magnification of any 1.25 inch eyepiece.” The title, the Zoom ratio field and the Focal length description all say 5x.

How many lens elements does it have?
The listing gives two answers. One field says three elements in two groups and another says two elements in one group. The description repeats both. There is no way to settle it from the listing.

What warranty does SVBONY give?
The field reads “We provide 1 year warranty for SVBONY telescope accessories and 30 days no reason to return,” and goes on to say service continues beyond that period. It is the fullest warranty statement on this shelf.
